Sembawang · June 2026 BTO · Standard
Sembawang Brook 4-room: the layout, walked through
That was a 4-room flat at Sembawang Brook, HDB's Standard project beside Sungei Sembawang. It's the unit 104 layout, redrawn to scale and furnished as a Japandi showflat, so you can get a feel for the rooms years before you collect your keys.
- Flat type
- 4-room · 3 bed, 2 bath
- Floor area
- 93 m² (90 m² internal)
- Project
- Sembawang Brook, Sembawang
- Launch
- June 2026 BTO exercise
- Classification
- Standard · 5-year MOP
- Nearest MRT
- Sembawang (North-South Line)
- 4-room price
- From $302,000 before grants
- Waiting time
- About 33 months

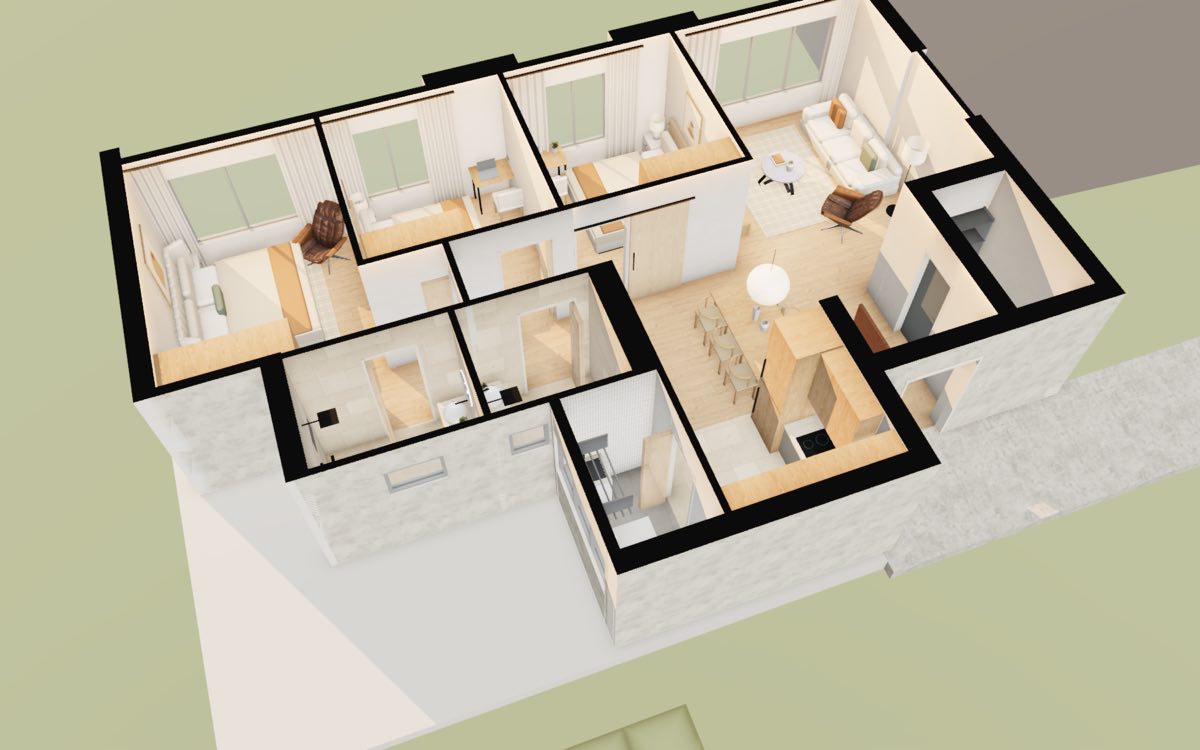

The layout, room by room
The three bedrooms and the living room sit side by side along one façade, each with a wide three-quarter-height window, so every main room gets daylight from the same side. The master bedroom is L-shaped, with its own bathroom off a small lobby, and the two bathrooms sit back to back behind the bedrooms.
There is no wall between the kitchen and the dining area: HDB marks the boundary with a dashed line, so the kitchen stays open to the dining table unless you add a partition. The service yard is a separate room off the kitchen, and the household shelter sits beside the front door.
| Room | About | In the model |
|---|---|---|

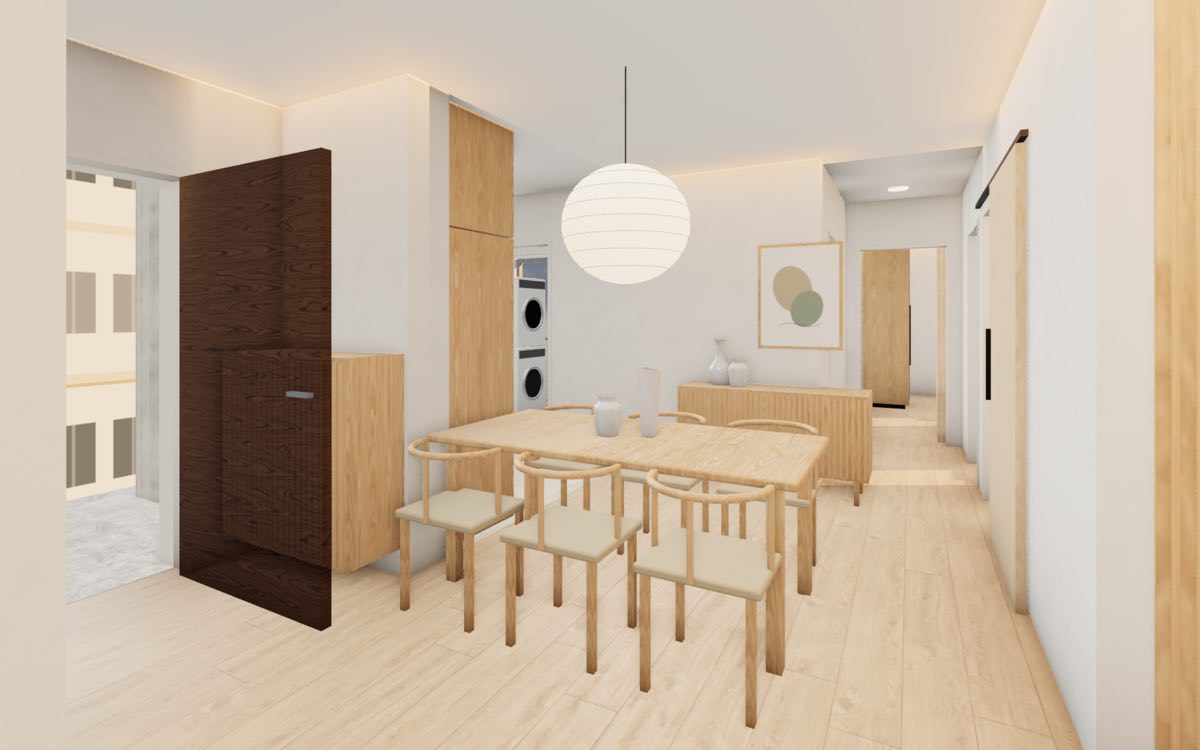

| Living and dining | 30.2 m² | A 2.2 m sofa facing a 2.4 m TV console on a 3 m fluted feature wall, and a dining table for six under a paper lantern. |
| Kitchen | 6.9 m² | Open to the dining area. L-shaped worktop with the sink under the wall cabinets, the hob on the short run, and a full-height fridge. |
| Service yard | 3.5 m² | Behind a folding door: stacked washer and dryer, a utility sink and a drying rack by the full-length window. |
| Household shelter | 4.0 m² | Steel door off the entrance. Shelves for storage. |
| Master bedroom | 15.1 m² | King bed (1.83 m) with a wing headboard, a 1.8 m wardrobe and a reading chair by the window. |
| Master bathroom | 4.5 m² | Full-width shower, vanity and WC. |
| Bedroom 2 | 9.5 m² | Queen bed (1.52 m), a 1.5 m wardrobe and a desk by the window. |
| Bedroom 3 | 9.5 m² | The mirror image of bedroom 2: queen bed, wardrobe and desk. |
| Common bathroom | 4.0 m² | Shower, vanity and WC. |
Room areas are measured to the wall centrelines of our redrawn plan and are approximate. HDB's 93 m² also counts the air-con ledge.
Styled as a Japandi showflat
Bare BTO flats are hard to read, so we staged this one the way a developer would stage a showflat: warm oak floors, fluted oak on the TV wall, a bouclé sofa, a paper lantern over the dining table and hidden cove lighting in the living room and bedrooms. The bathrooms are in a travertine-look stone.
HDB hands these flats over with vinyl strip flooring in the bedrooms and porcelain tiles in the living and dining room, kitchen, yard and bathrooms, so the floors are done when you collect the keys. The oak in the model is our styling.
Doors are sliding or slide-and-swing wherever the walls allow, which keeps the small rooms feeling open. This is one direction for this layout; we can stage your unit to your own taste or to your interior designer's plan.
About Sembawang Brook
Sembawang Brook is a Standard BTO project in Sembawang, launched in HDB's June 2026 sales exercise. It is bounded by Admiralty Street and Sungei Sembawang, with Sembawang station on the North-South Line, Sun Plaza and Sembawang Mart nearby.
Five blocks of 26 to 30 storeys hold 1,160 flats: 261 2-room Flexi, 87 3-room, 464 4-room, 319 5-room and 29 3Gen flats. One block also has 200 rental flats. The name comes from Sungei Sembawang, and the playground has a maritime theme for the area's naval heritage. An eight-storey car park has a preschool on its first two levels and a rooftop garden with fitness facilities and a community garden overlooking the river. A separate commercial building will have a minimart, shops, an eating house and another preschool, and there is a residents' network centre.
These are Shorter Waiting Time flats, with an estimated wait of 33 months. They come with floor finishes, internal doors and sanitary fittings: in the 4-room flats, vinyl strip flooring in the bedrooms and tiles in the living and dining room, kitchen, service yard and bathrooms. As a Standard project, it has a 5-year minimum occupation period and no subsidy recovery. HDB's indicative prices for the 4-room flats were $302,000 to $428,000 before grants, including those finishes.
Check the details on HDB's Flat Portal before you decide.
Sources:
- HDB, Sembawang Brook sales brochure (June 2026): blocks, storeys, facilities and fittings.
- HDB, June 2026 BTO sales exercise press release (17 June 2026) and its Annex A: prices, floor areas, unit counts and waiting times.
- MyNiceHome (HDB), June 2026 Sales Launch: location, MRT and nearby amenities.
- HDB, Standard, Plus and Prime housing framework.
Booked a flat at Sembawang Brook?
We'll build your exact unit, with your renovation plan, as a private 3D walkthrough to share with your family and your ID.
Questions
How big is a Sembawang Brook 4-room flat?
HDB gives 93 m², which includes the air-con ledge. The internal floor area is about 90 m². In our redrawn plan the living and dining room is about 30.2 m² and the master bedroom about 15.1 m².
How many bedrooms and bathrooms does it have?
Three bedrooms and two bathrooms. The master bedroom has its own bathroom. The kitchen is open to the dining area with a separate service yard behind it, and there is a household shelter by the front door, which most owners use as a storeroom.
Which MRT station is nearest to Sembawang Brook?
Sembawang station on the North-South Line. Buses also run along Admiralty Street and Sembawang Drive.
Is Sembawang Brook a Standard project?
Yes. Standard flats have a 5-year minimum occupation period and no subsidy recovery when you sell, and you can rent out the whole flat once the MOP is up. Check HDB's current terms before you book.
When will Sembawang Brook be completed?
Sembawang Brook has Shorter Waiting Time flats: at the June 2026 launch HDB estimated a wait of 33 months, counted from the median month of the flat selection exercise to the projected completion of the blocks.
How much is a 4-room flat at Sembawang Brook?
At the June 2026 launch, HDB's indicative prices for the 4-room flats were $302,000 to $428,000 (including the floor finishes, internal doors and sanitary fittings HDB provides) before grants. The price of each flat depends on its floor and position. Eligible first-timer families can get an Enhanced CPF Housing Grant of up to $120,000.
Is this the official HDB floor plan?
No. It is our own drawing of the unit 104 layout, made from HDB's published sales information to show how the flat could look and feel. Dimensions are approximate and the furniture and finishes are our styling. Check HDB's brochure for the official plan.
Can you make my own unit in 3D?
Yes. Send us your unit's floor plan and, if you have one, your interior designer's layout, and we build it as a private 3D walkthrough you can share with a link. Get in touch.
More June 2026 BTO flats in 3D

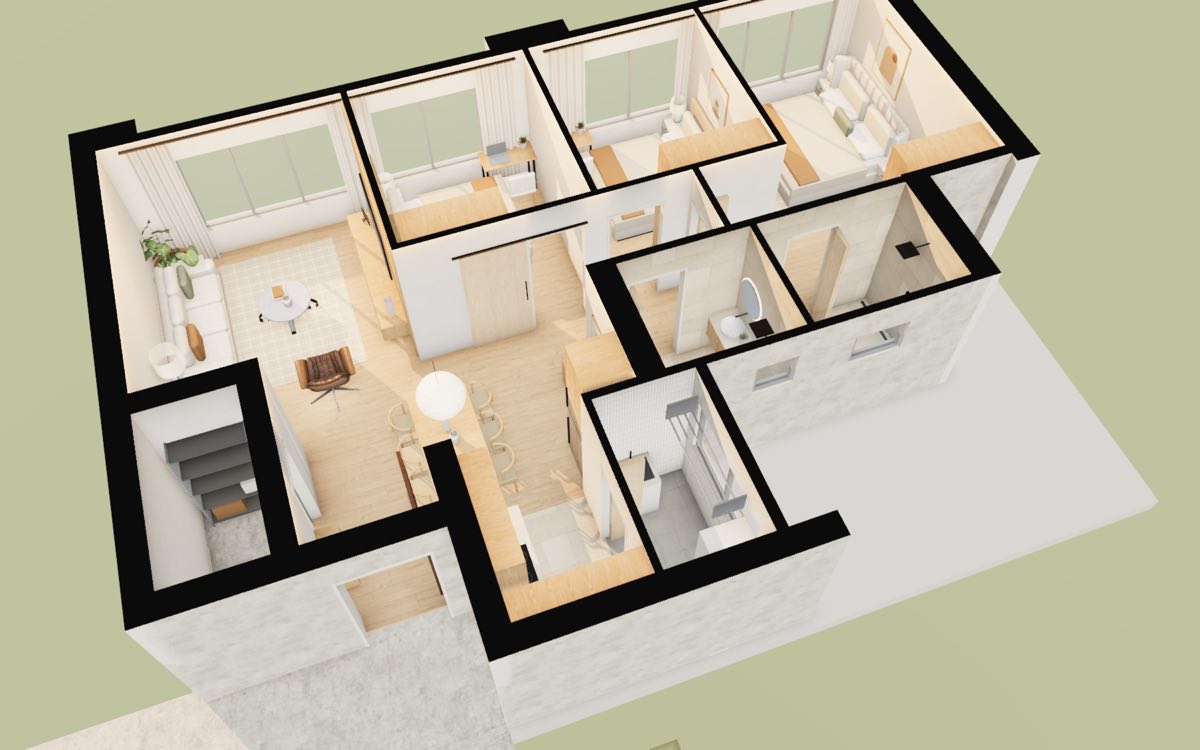

Lakeview Cascadia 4-room
Bishan · Prime · Marymount MRT. 90 m², 3 bedrooms, 2 baths.

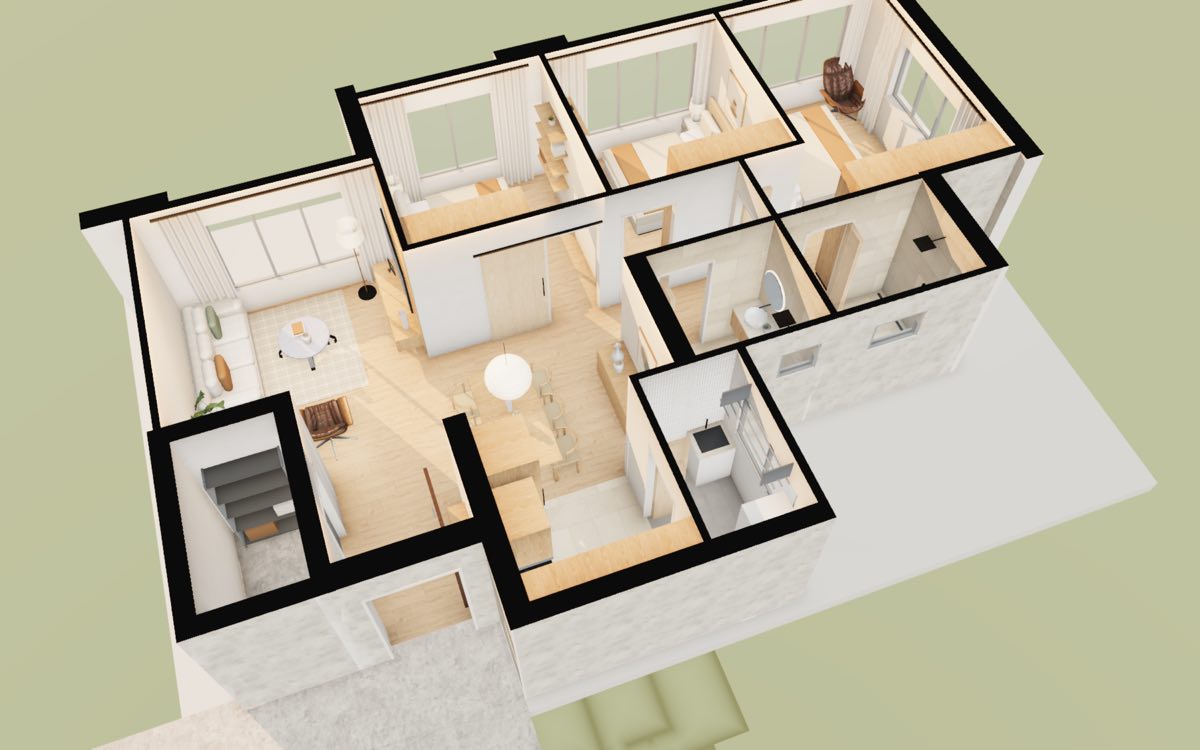

Kebun Baru Ridge 4-room
Ang Mo Kio · Plus · Mayflower MRT. 89 m², 3 bedrooms, 2 baths.

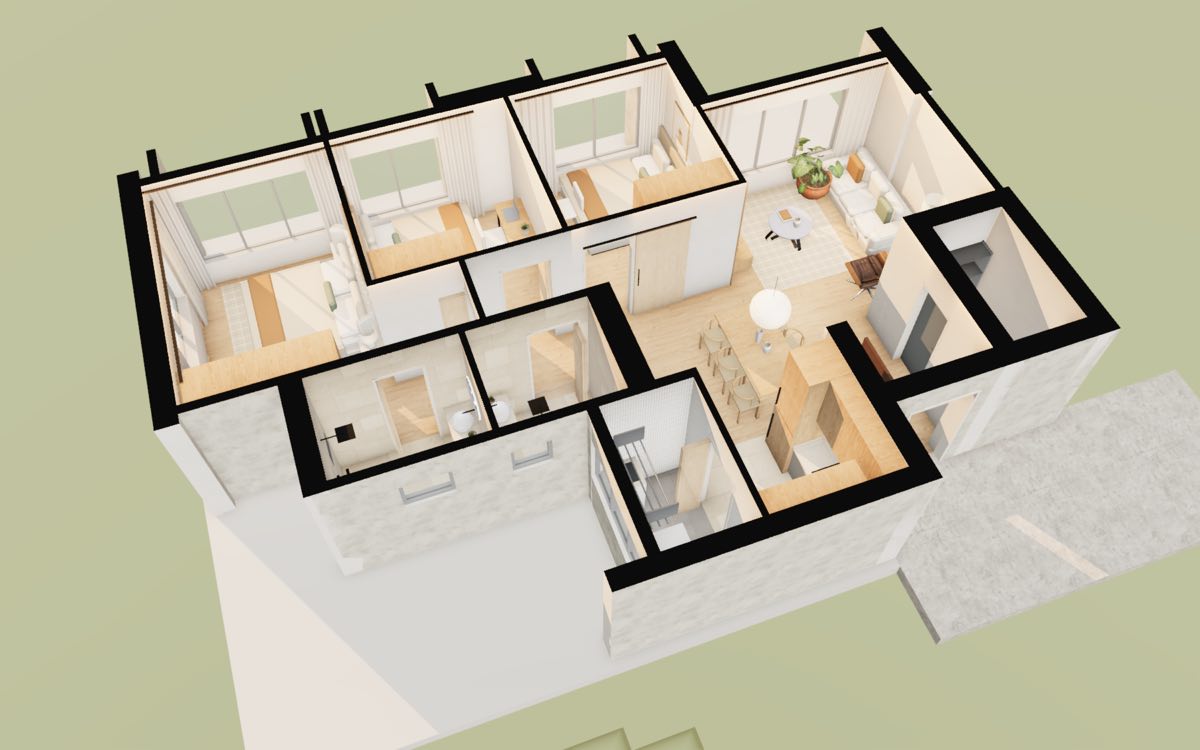

Kebun Baru Breeze 4-room
Ang Mo Kio · Plus · next to Bishan-AMK Park. 90 m², 3 bedrooms, 2 baths.

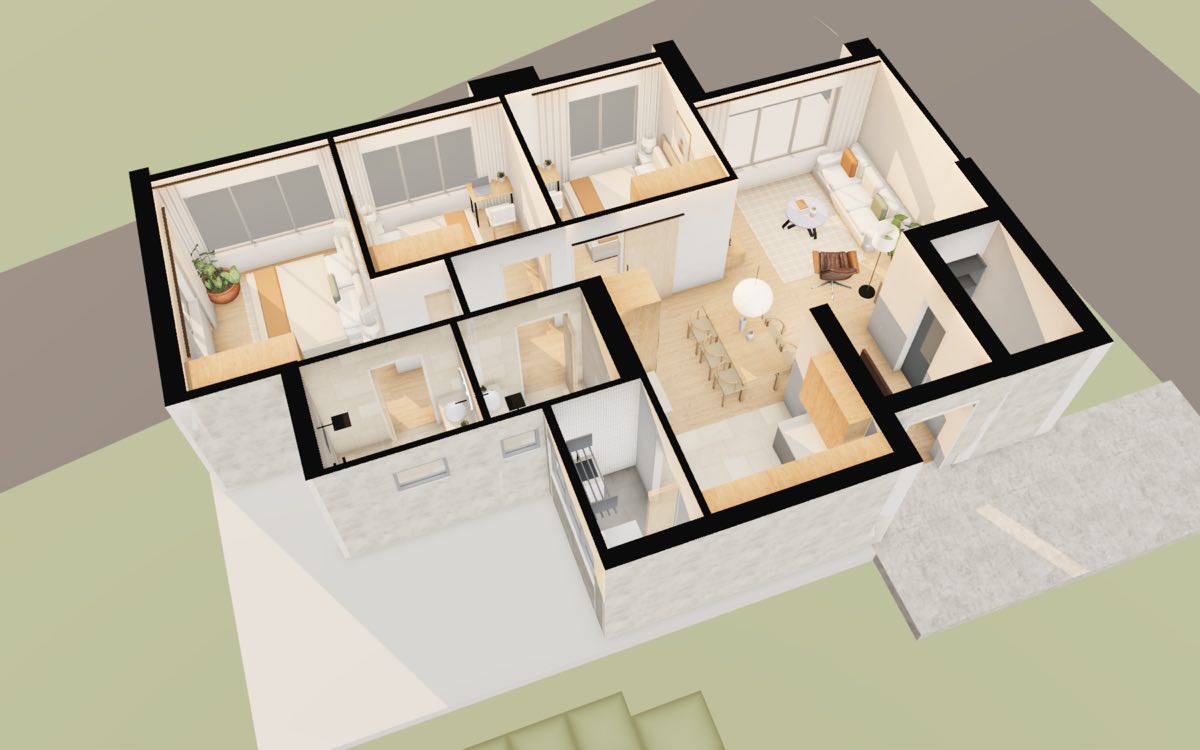

Sembawang Portico 4-room
Sembawang · Standard · Sembawang MRT. 93 m², 3 bedrooms, 2 baths.

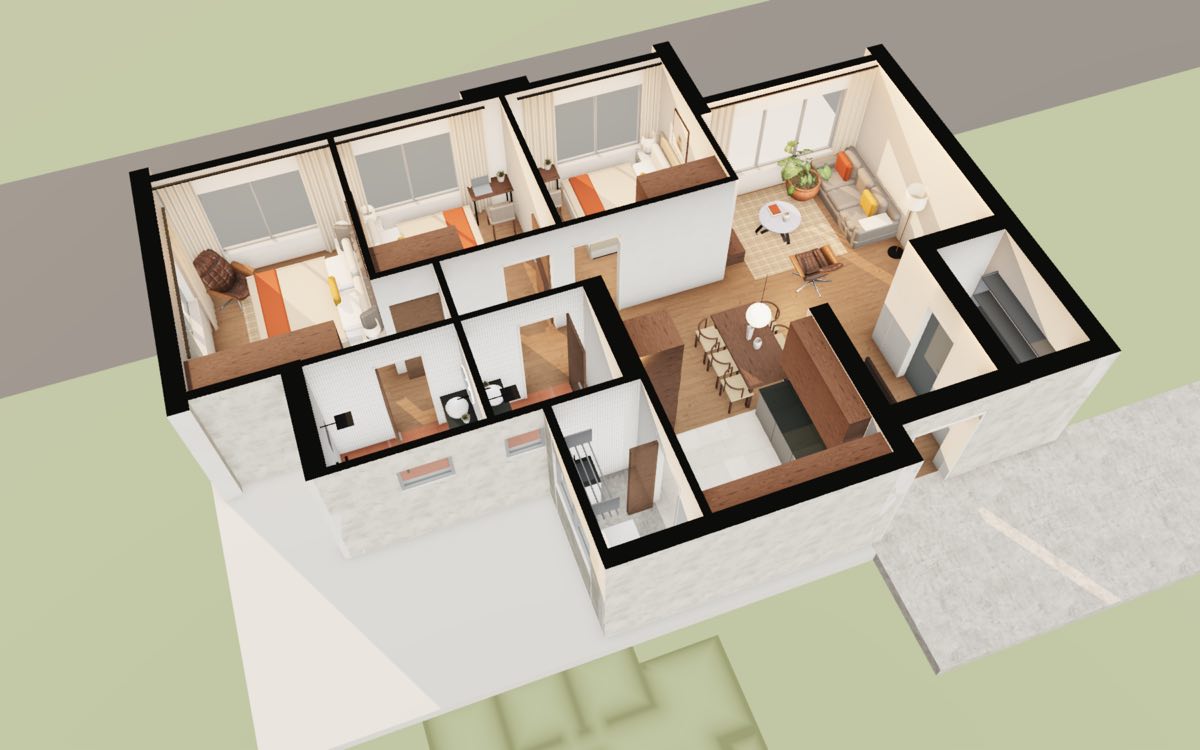

Woodgrove Acres 4-room
